Introduction

The Southern Islands graphic chips of Radeon 7000 series boards and FirePro W-series Workstation cards support a new OpenGL extension called AMD_sparse_texture that allows to download only parts of a texture image (tiles), rather than providing the entire image all at once. The driver will commit memory only for the downloaded tiles, and the application may decide to unload tiles again if they are no longer needed. This way, the graphics memory can serve as a texture tile cache, indexing parts of vast textures in main memory or even on disk.

The entire procedure is pretty similar to allocating a buffer object and then just filling parts of it via glBufferSubData(). A difference however is that with sparse textures, the tiles need to be aligned to virtual pages, and memory is only allocated for specified tiles.

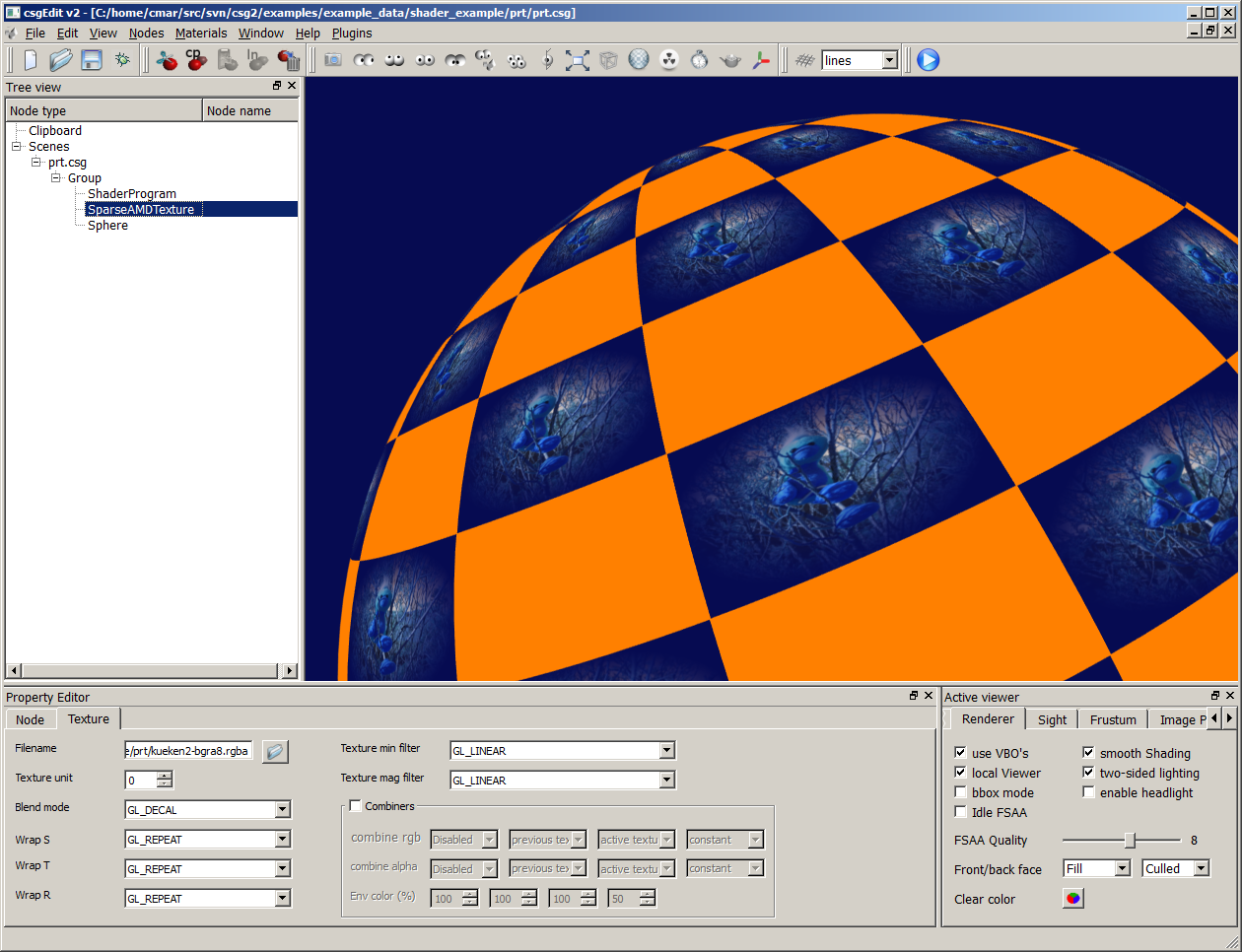

The screenshot above shows an example from the FirePro SDK, adapted to tinySG: The original shader code from the example has been time-warped back to GLSL 1.0, stripped down to the bare minimum and is still working with PRT.

The sparse texture extension requires quite some effort on the applications side, and documentation on the net is still poor. Lets have a look at some rarely documented fast facts on the extension before we dive into code snippets:

The Southern Island GPUs maintain texture tiles in chunks of 64kb in a page table. Each tile will require 32bytes of management information, and the texture size needs to be a multiple of the tile size (so all tiles are of equal size).

Sparse Texture Fetches in a GLSL Shader

    // **** Vertex Shader ****************************************
    void main ()
    {
      // just pass the required parameters on to the
      // fragment stage - nothing unusual here:
      gl_Position    = ftransform();
      gl_TexCoord[0] = gl_MultiTexCoord0;
    }


    // **** Fragment Shader **************************************
    #extension GL_AMD_sparse_texture : enable

    uniform sampler2D Diffuse;

    void main()
    {
      vec4 texel = vec4(0);

      // Use "sparseTexture" instead of the standard "vec4 texture2D (sampler, coord)". Note that
      // the return value is a result code. The texel to fetch ends up in the 3rd inout parameter:
      int result = sparseTexture(Diffuse, gl_TexCoord[0].st, texel);

      // The return code indicates cache misses. If it is flagged to be fine, then just use the
      // fetched texel. Otherwise, render a "fail color" for demo purposes:
      if (sparseTexelResident(result))
        gl_FragColor = texel;
      else
        // render texture lookup failure color.
        gl_FragColor = vec4(1.0, 0.5, 0.0, 1.0);
    }

Setting up the Application

  void csgSparseAMDTexture::DownloadImage ()
  {
    // The texture object has already been bound by calling csgTexture::OnRender()!
    glPixelStorei (GL_UNPACK_ALIGNMENT, 1);

    GLenum       format;
    unsigned int width, height, depth, dim;

    // img is an object holding pixels (bmp), width, height, depth, dimension and
    // format of a 2D image. The following two lines fetch these parameters:
    img->GetImgParams (width, height, depth, dim);
    img->GetGLFormat (format);

    GLsizei const Size = 4096;
    GLsizei const depth= 1;
    GLsizei const layers = 1;
    GLsizei       Width = Size / width;
    GLsizei       Height = Size / height;

    // Specify the storage requirements for texture object: For demo purposes Size x Size
    // is used for width x height, which is larger than the actual texImage....

    glTexStorageSparseAMD(GL_TEXTURE_2D, format, Size, Size, depth, layers,
	                      GL_TEXTURE_STORAGE_SPARSE_BIT_AMD);

    // Page-in every second tile of our (Size x Size) texture (always using the complete
	// texImage as a tile for demo purposes):
    for(GLsizei j = 0; j < Height; ++j)
      for(GLsizei i = 0; i < Width; ++i)
        glTexSubImage2D (GL_TEXTURE_2D, 0, i * GLsizei(width), j * GLsizei(height),
                         GLsizei(width), GLsizei(height), GL_BGRA, GL_UNSIGNED_BYTE,
                         // DEMO: Only provide every other tile, leave others for intended misses:
                         (i+j)%2 ? img->Data () : NULL);

    // Since mipmaps are required, we want to ensure using them: Specify index of
    // lowest defined mipmap level (GL default is 0):
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_BASE_LEVEL, 0);

    // Sets index of highest defined mipmap level (default would be "1000"):
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAX_LEVEL, GLint(m_numLevels - 1));

    // Setup filtering to use mipmaps:
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);

    // Generate mipmaps based on parameters just set:
    glGenerateMipmap(GL_TEXTURE_2D);

    // Enforce mipmap filter for next render call:
    minFilter = GL_LINEAR_MIPMAP_LINEAR;
  }

tinySGs goal is to support extremely large textures, like satellite images of the earth. This data tends to be so huge that it does not even fit into main memory. As a result, calculating mipmap levels becomes difficult and is not supported by tinySG in the initial implementation.
Nevertheless, the SparseTexture node also maintains a single lowres texture that is always available to the PRT-shader. It is used whenever a texture miss is detected to render some reasonable replacement.

The code snippet above was just to get you started and show something on the screen, but does not support the dynamic loading of tiles. Whenever a texel fetch fails in the shader, it is up to the shader to report information on the missing texel back to the application. The application has to upload the missing part of the texture and render the scene again, if it, like tinySGs traversers, did not anticipate the required texture tiles in advance.

Paging Strategies

Splitting huge resolutions

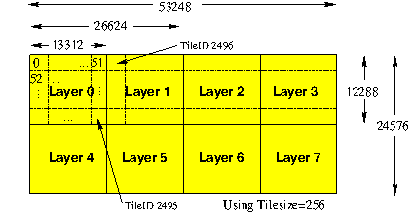

2D texture coordinates have to be mapped onto 3D coordinates to provide the layer ID as well. As an example, if a texture has a horizontal resolution of 32k texels, it is split into two layers or 16k texels. A texture s-coordinate of 0.75 would end up in the middle of the right layer. Mathematically, this is simply multiplying the texture coordinate with the number of layers and then using the integer part as the layer index and the fraction part as the offset into that layer (0.75 * 2 = 1.5, so layer ID is 1 and s-coordinate 0.5). Doing the same for the t-coordinate gives another layer coordinate and offset, arranging the layers row by row, the layerID finally becomes layerID = (layerY*layersPerRow+layerX).

Reporting texture fetch misses back to the application

Since the GPU is an embarrassingly parallel device, it is useful to already determine the missing texture tile in the shader, rather than just passing back the failing texture coordinates. In the latter approach, the CPU would need to deal with hundreds of misses sequentially, most of them ending up in the same virtual page anyway.

Fortunately, modern OpenGL (4.2 and up) supports random access to buffers and atomic read-modify-write operations on buffers. tinySG uses an image buffer as a bitmask for missing tiles: Each tile ID corresponds to a bit in that buffer. If a texture fetch miss is detected, the PRT shader calculated the tile ID that texel should have come from and sets the corresponding bit in the feedback buffer, like this (find the entire shader here):

	// Fragment shader:

	layout(r32ui) uniform uimageBuffer restrict data;
	uniform sampler2DArray sparseTex;
	uniform sampler2D      lowResTex;

	   ...
	   // Sparse texture lookup:

	   int res = sparseTexture(sparseTex, tc3, texel);

	   if (sparseTexelResident(Code))

		  fragColor = texel;
	   else {
		  // Determine tile ID from texture coordinate:
		  int tileID = GetTileIDByCoord (tc3);

		  // Split the tileID into a bit and byte ID to save some storage:
		  int tileID_Bit = tileID & 31;
		  int tileID_Byte = tileID / 32;

		  // Set the bit corresponding to tileID in the feedback buffer:
		  uint tileID_BitMask = 1<<tileID_Bit;
		  uint oldVal = imageAtomicOr(data, tileID_Byte, tileID_BitMask);

		  fragColor = texture2D (lowResTex, tc2);
	   }
	   ...
	   lighting code follows

1. Readback the image buffer containing the PRT-shader feedback from the last frame and upload missing tiles for this frame, as indicated by the bitmask. Then reset the image buffer to receive feedback for the current frame.
2. Bind the lowres and hires textures to texture units and setup the texture environment. Setup uniforms for the PRT-shader, providing information on the tiling (like number of layers in s- and t-direction for the conversion of 2D texture coordinates to 3D layer coordinates).

	// Retrieve feedback on missing tiles from last frame:
	glBindBuffer(GL_TEXTURE_BUFFER, feedbackBufferID);
	buf = glMapBuffer(GL_TEXTURE_BUFFER, GL_READ_WRITE);

        // buf contains bits of missing tiles. Convert bits to std::vector of tile IDs:
        TileVec missingTiles;
        int numMissing = GetMissingTileIDs (buf, missingTiles);

        // Clear buffer for next renderings:
        long numTiles, tileSize, tpr;
        tileCache->GetTilingInfo (tileSize, numTiles, tpr);
        memset (buf, 0, numTiles/8);

	glUnmapBuffer(GL_TEXTURE_BUFFER);
	glBindBuffer(GL_TEXTURE_BUFFER, 0);

	// Upload missing tiles to sparse texture:
	if (numMissing) {
        // tiles missing -> request another frame:
        trav->SetRedraw(CSG_REDRAW_SHADER);
	    // upload missing tiles, as indicated in bitmap:
        int numUploaded = UploadTiles (missingTiles);
    }

	// Setup texture state:
    GLint sparseTexID = m_sparseGLIDs [trav->pipeID];
	glActiveTexture (GL_TEXTURE0+sparseTexUnit);
	glBindTexture (GL_TEXTURE_2D_ARRAY, sparseTexID);

    GLint lowresTexID = m_loresGLIDs [trav->pipeID];
	glActiveTexture (GL_TEXTURE0+lowresTexUnit);
	glBindTexture (GL_TEXTURE_2D_ARRAY, lowresTexID);

	// Setup Shader (ShaderNode has been visited bz the traverser before, shader is active!)
	GLuint H = shader->GetShaderProgID (pipeID);

   	GLint loc = glGetUniformLocation(H, "data");
	glUniform1i(loc, bufIndex);
	glBindImageTextureEXT(bufIndex, bufTexture, 0, GL_FALSE, 0, GL_READ_WRITE, format);

	loc = glGetUniformLocation (H, "sparseTex");
	glUniform1i(loc, sparseTexUnit);

    loc = glGetUniformLocation (H, "lowResTex");
    glUniform1i(loc, &m_unit);

    loc = glGetUniformLocation (H, "numLayers");
	glUniform2fv(loc, 1, m_layerLayout);

    loc = glGetUniformLocation (H, "imageSize");
    glUniform2fv(loc, 1, iSize);

    loc = glGetUniformLocation (H, "tileSize");
    glUniform1f(loc, fTileSize);

Update 27.06.2015: The notes above deal with an AMD-specific extension. In August 2013, the OpenGL ARB released a similar cross-vendor extension to add sparse texture support to OpenGL. Find more information on the ARB version in the tech guide on ARB_sparse_texture.

Keep rendering,
Christian

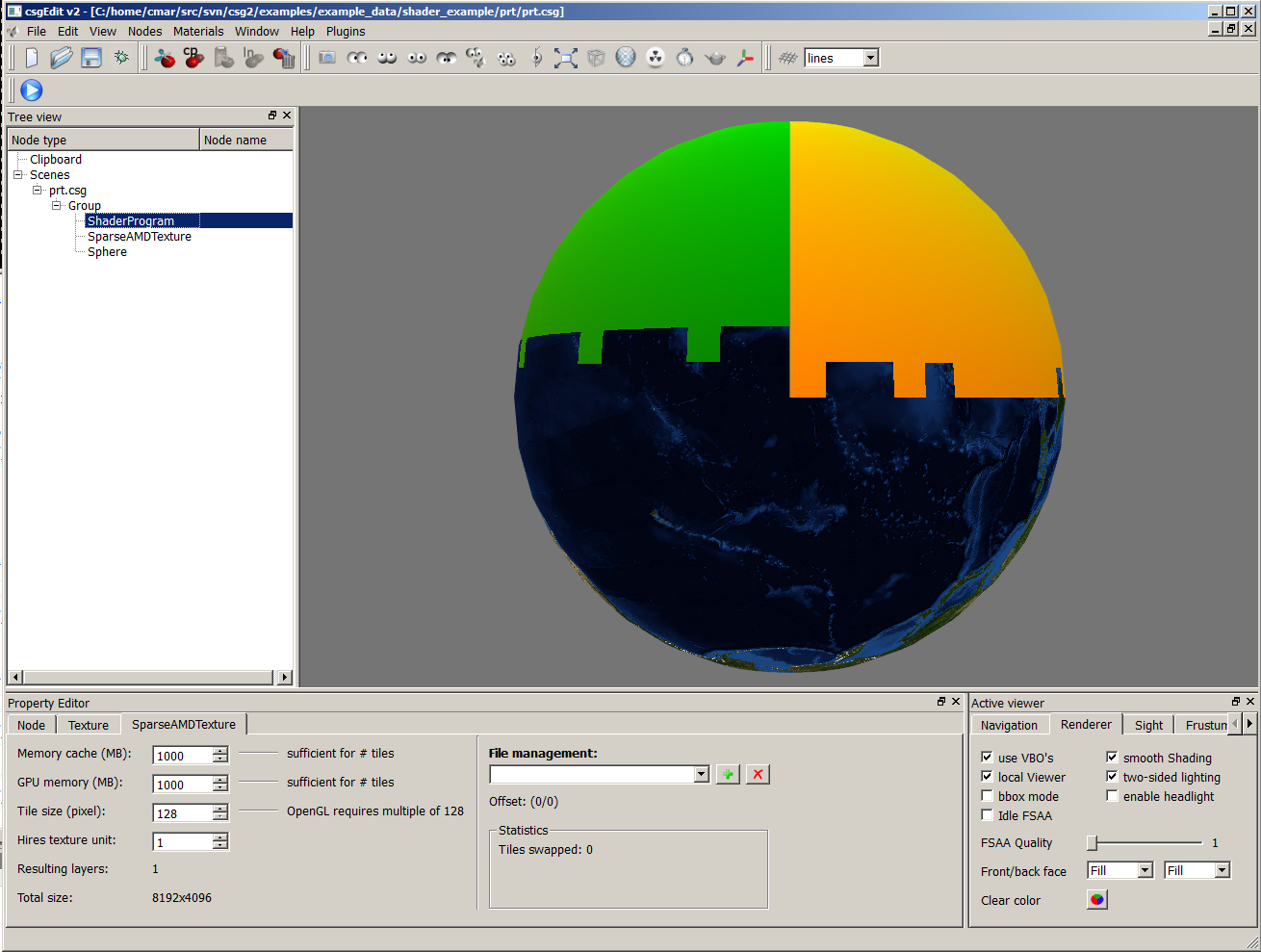

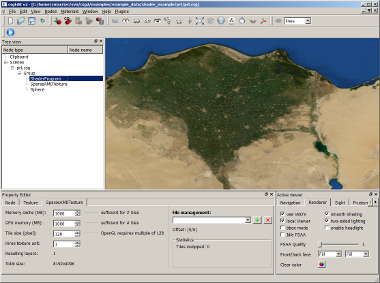

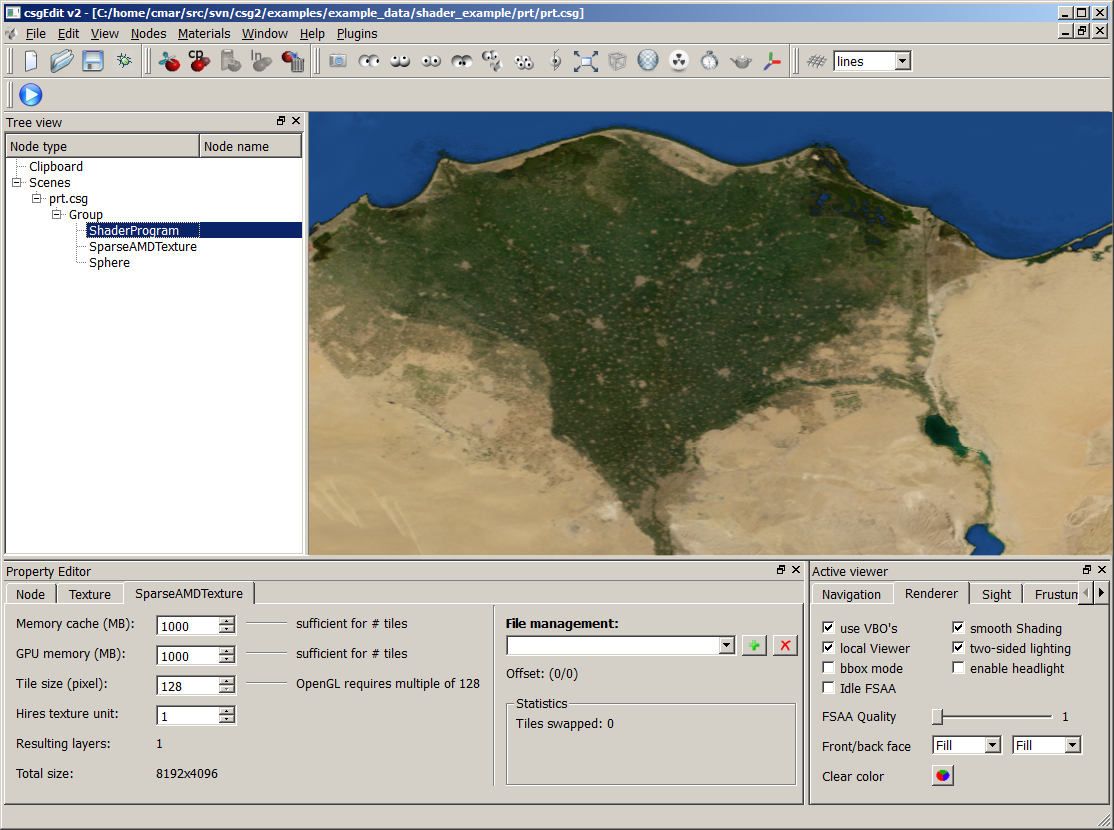

tsgEdit uploading tiles from a 86,016 x 43,008 rgb texture from Nasa's Blue Marble images. The texture is sourced from eight files and split into 8x4 layers, resulting in 225,792 tiles of 128x128 texels. The false colors in the upper half indicate missing tiles and encode the 3D layer coordinate for debugging purposes.	Close zoom in on Alexandria and the delta of river Nile. The image shows the texture in a 1:1 scale.
