OpenGL Tessellation shader
Friends of tinyScenegraph,
Since release 4.0, OpenGL is capable of subdividing the geometry given by the application directly on the GPU. You may have seen the cobblestone road or roof tiles in the Unigine Heaven benchmark, which uses GPU tessellation to create detailed geometry. In OpenGL, a shader is responsible for all these details, i.e. how many sub-polygons are created and what they look like. In a way, this is similar to the geometry shader stage, which can also create new primitives from existing ones. The difference is that the tessellation stage trades some flexibility of the geometry shader for a vast performance improvement. For example, a geometry shader can decide in each invocation exactly how many primitives it creates, while the tessellation stage uses a fixed function block to create primitives according to it's configuration. Further more, geometry shaders accept multiple primitive types GL_TRIANGLES, GL_LINES, etc.), while the tessellation shader requires primitives to be sent to the hardware as GL_PATCHES.
However, the geometry shader stage is not gone, so we you don't loose
anything: It follows the tessellation stage, remains optional and can
process the tessellation stage outputs as if they came from the vertex
shader. We can use either stage, combine them or omit them entirely,
running just a vertex and a fragment stage.
Application setupIf you already use glDrawArrays() on the host side to render your geometry, the required changes are very limited. You may simply specify all your triangles with all vertex attributes like normals, texcoords or generic attributes as before. Just put your data into a vertex buffer object (VBO). It does not matter if you interleave your vertex attributes or store them sequentially, if you use multiple VBOs or just one (although the former choices are better, performance-wise). See Generic Vertex Attributes for ways to do this.The only real difference is that you are required to render GL_PATCHES instead of GL_TRIANGLES or whatever way you organise your geometry. To render a bunch of 100 triangular patches, call glDrawArrays() like this:
// Setup and bind your VBO:
// ...
// Specify how many consecutive vertices make up a patch (e.g. 3 for a
// triangular patch, described by just it's vertices):
glPatchParameteri(GL_PATCH_VERTICES, 3);
// Note *GL_PATCHES* as the render mode parameter:
glDrawArrays(GL_PATCHES, 0, 100);
The per-patch input will be processed by the tessellation control stage,
which can see all input at once. Three vertices of a triangle like
shown above is a really simple example. You may decide to do bezier
patches, and define each patch by 16 vertices/tangents if you like.
Shader setupThe tessellation shader consists of three sub-stages. Let's have a look at them in reverse order:Tessellation Evaluation ShaderThe 3rd, final and mandatory tessellation sub-stage is the tessellation evaluation shader (TES). It specifies what kind of patches it expects via a layout statement:
On top of the relative coordinates of a sub-primitive, the tessellation evaluation shader has access to whatever the previous stage has provided. A simple, but complete tessellation evaluation shader dealing with triangular patches may look like this:
Primitive GeneratorThe patch-relative coordinates the evaluation stage receives as it's input are generated by a fixed function block, the Primitive Generator. There is not much to do here, except advising it how to create these coordinates. This is the job of the tessellation control shader.Tessellation Control ShaderThe 1st sub-stage is the tessellation control shader (TCS). It's job is to instruct the primitive generator how to tessellate the patch. On top, it has to provide per-patch input variables for the TES (do calculations like a vertex shader or simple pass-through, postponing any transformation to later stages).The tessellation levels specify how many subdivisions the primitive generator creates:
A simple, but complete TCS may look like this:
// ** Tessellation control shader **
#version 150
#extension GL_ARB_tessellation_shader : enable
// Specify that the tcs will be invoked 3 times, creating three input vertices
// for the tes. Each invocation is assumed to write to the 'gl_InvocationID'
// index in the output array(s).
layout(vertices = 3) out;
// All patch input is accessible in each invocation:
in vec3 vPos[];
// We decided by the layout above that we'll pass 3 vertices on to the
// evaluation stage. Note we can have multiple arrays like tcPos[], all
// with 3 elements (e.g. for normals):
out vec3 tcPos[];
// Have application-provided parameters that define the level of tessellation:
uniform float tessLevelInner=3;
uniform float tessLevelOuter=3;
// gl_InvocationID specifies the input vertex of the patch. We defined
// 'glPatchParameteri(GL_PATCH_VERTICES, 3)' on the host side above, so
// ID will be 0,1 and 2.
#define ID gl_InvocationID
void main()
{
// Just pass-through original vertices. Leave transformations and
// barycentric interpolation to the evaluation stage:
tcPos[ID] = vPos[ID];
// Setup primitive generator just once (not for all three vertices):
if (ID == 0) {
// In this simple example, the application specifies the tessellation
// levels via uniforms. However, we could also make use of the patch
// data in vPos, calculate the distance to the camera here and setup a
// dynamic level of detail.
gl_TessLevelInner[0] = tessLevelInner;
gl_TessLevelOuter[0] = tessLevelOuter;
gl_TessLevelOuter[1] = tessLevelOuter;
gl_TessLevelOuter[2] = tessLevelOuter;
}
}

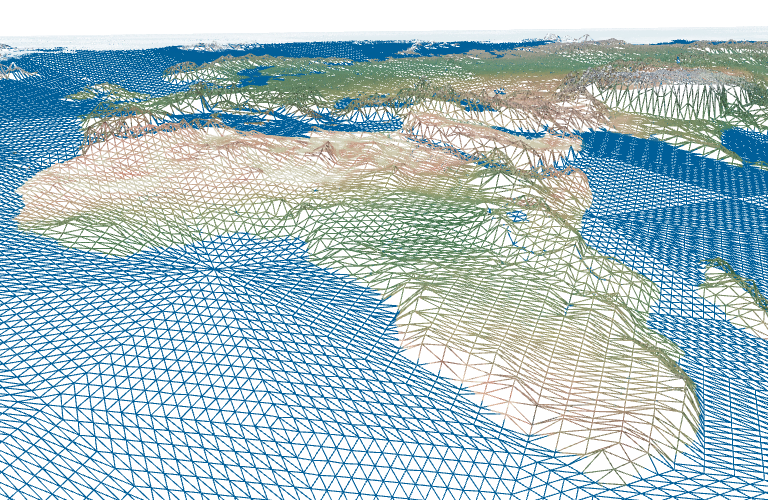

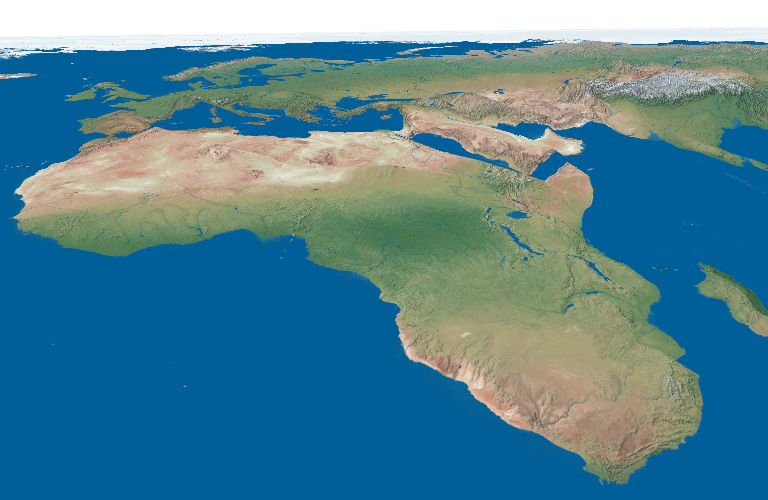

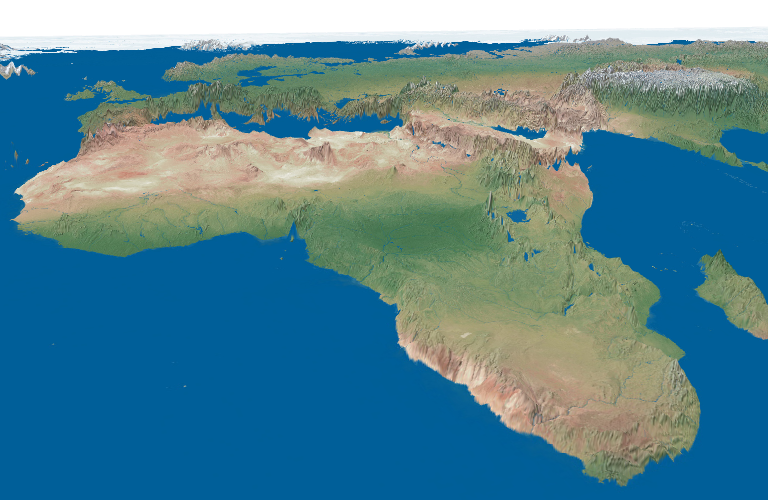

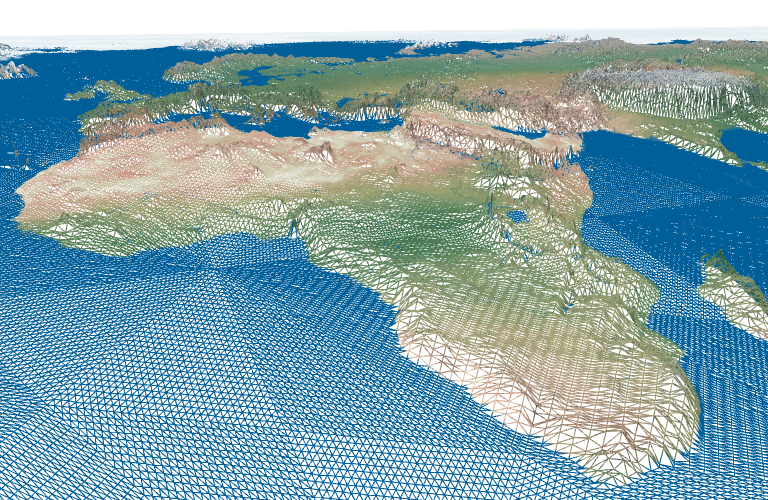

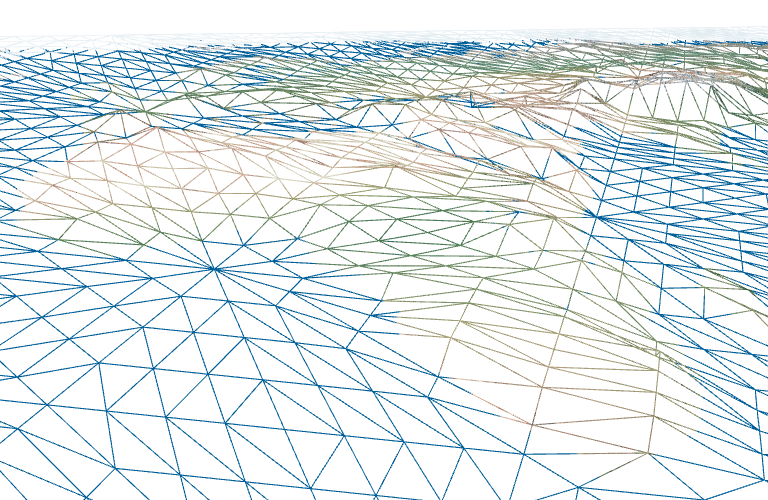

Making tessellation usefulObviously, flat triangulation of existing triangles as shown in the example above is not very useful. The code just demonstrates the bare minimum to get you started. Things become more interesting if you apply additional transformations to the sub-primitives, e.g. by using a displacement map or performing a bezier surface approximation.Displacement mappingDisplacement mapping uses a heightmap texture to displace vertices of a surface along the surface normal. We can interpolate texture coordinates of patch corner vertices to get texture coordinates for inner sub-primitives and use the height map to displace generated sub-vertices.
Isoline tessellation
Isoline tessellation creates a bunch of polylines from each patch. The
primitive generator creates uv-coordinates, with u identifying the
polyline and v the vertex within the polyline.
This tessellation mode is ideal for generating a hell of a lot of lines

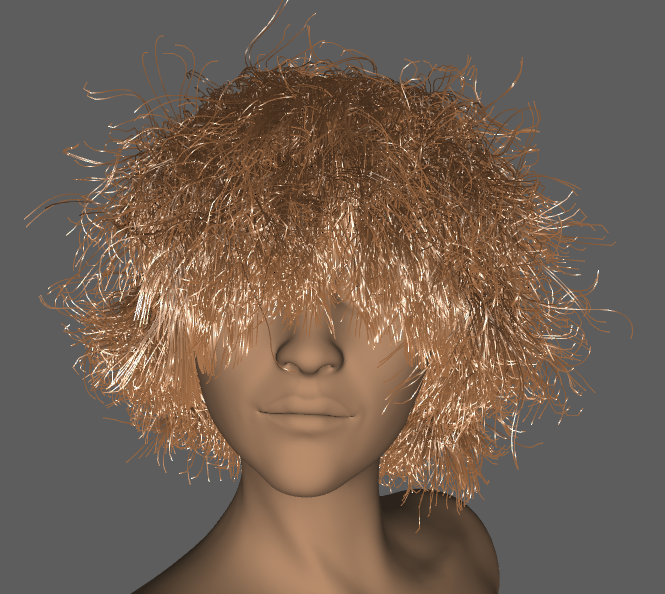

very quickly. The image to the right is a screenshot of the
tinyCoiffeur hair simulation plugin of tinySG.
The image shows about 45,000 hairs, with each hair is visualised by a
polyline with 16 vertices, affected by lighting. A polylines points are stored in a shader storage buffer, the uv coordinates produced by the primitive generator are used to address them and fetch their coordinates in the evaluation stage. Each frame, a GLSL compute shader applies forces like gravity or wind to animate the polyline points.
To make addressing as simple as possible, the application uses instanced
rendering to render as many instances of a single dummy point as there
are hairs in the shader storage buffer. Each instance served as a patch
defined by one point. The tessellation shader stage then creates multiple
polylines from each patch, representing a strand of hair. This way,
tessellation multiplies the number of simulated guide hairs by up to
64x on current hardware. Bezier Surfaces
Bezier surfaces come in at least two flavours: Triangle-based and
quadrilateral-based surface patches. The latter basically takes tangent
vectors into account to describe the (cubic) curvature of a surface. They
are not yet supported by any tinySG scene node. The former are also known
as n-patches and can be rendered in tinySG with csgIndexedTriset
nodes and a suitable tessellation shader.

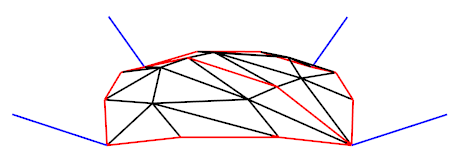

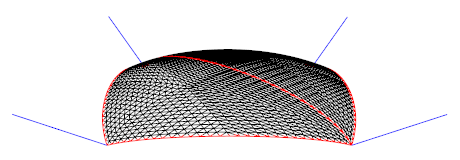

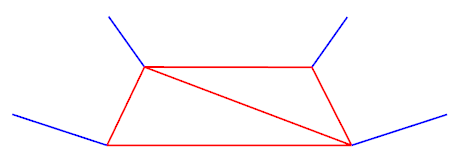

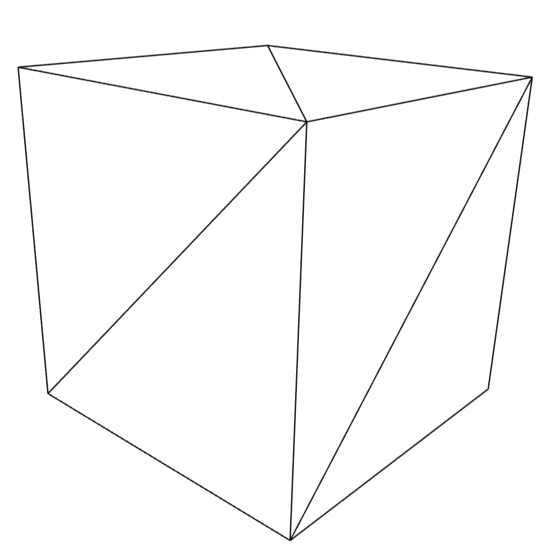

Triangular bezier patches are defined by the corners of a triangle and their associated surface normals. Without any shader, tinySG renders a csgIndexedTriset as if it was an ordinary set of triangles. But if the render traverser state has encountered an active tessellation shader before, the triangles are rendered as GL_PATCHES and the shader does it's magic on the provided vertices and normals. The images below show two such patches. Without a shader, the triangles appear flat. As soon as the n-patch shader is active, the vertex normals provoke a curvature in the surface. Patch boundaries are shown in red, normal vectors in blue, sub-triangles introduced by the tessellator in black.

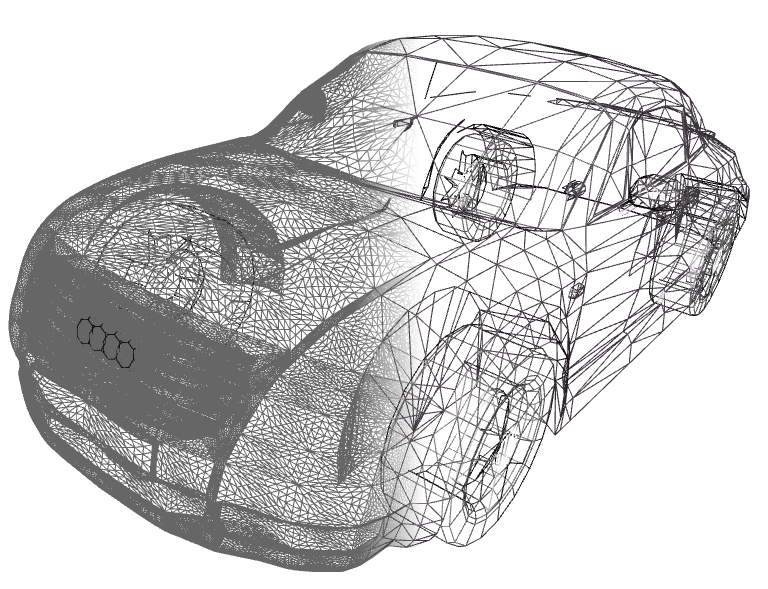

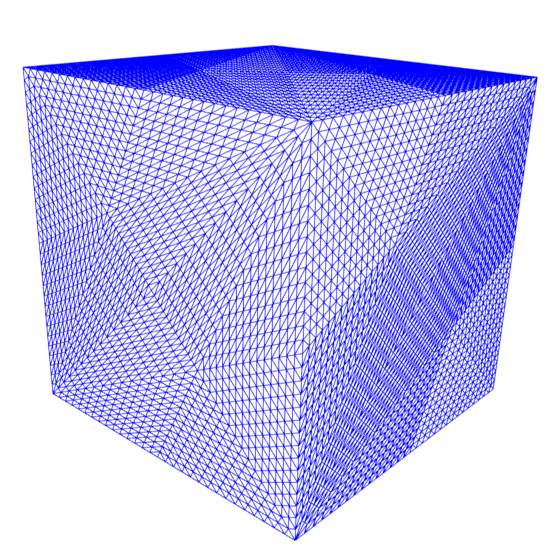

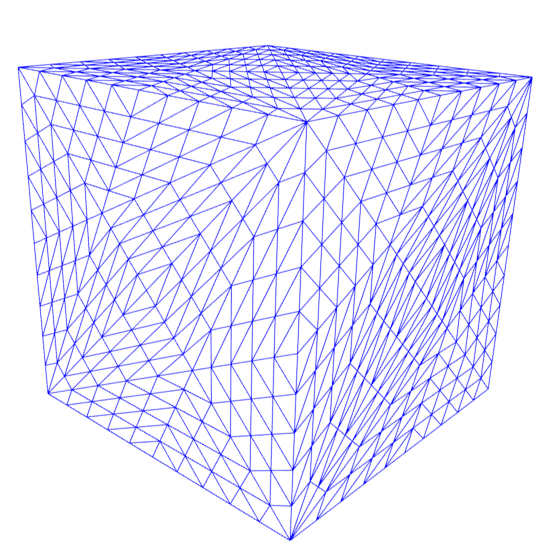

Notes on performanceThe tinySG test laptop runs a Geforce GT-750M. This chip seems to be mostly limited by fill rate or memory bandwidth, the compute-intensive tessellation runs on internal caches and has limited influence on performance. The images below show different levels of tessellation, with backface culling enabled (measurements are done with backface culling disabled).
Now that you know...This techguide is just meant to get you started with tessellation shaders. Additional features not mentioned above include
Keep rendering,
Copyright by Christian Marten, 2015 Last change: 28.08.2015 |
